Push Button Control Boards

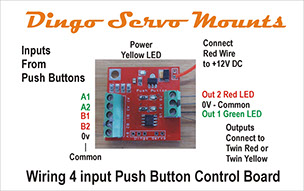

The 4 Input (red) board is designed to interface with our standard Twin control boards (Point or Signal)

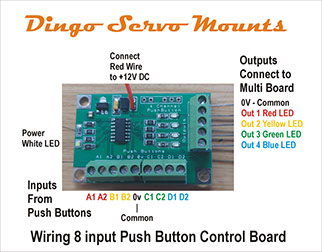

And the 8 Input (green) board will interface with our Multi Control Board

The 4 input board will accept 4 push buttons to control 2 independent servos

Inputs A1 and B1 will switch output 1 and 2 (ON) respectively

While A2 And B2 will switch them off again.

The 8 input board works in a similar fashion but will switch 4 individual servos with 8 push buttons..

These boards can also be used with a Wand and Stud configuration

Note: do NOT use latching push buttons.

Video Here
